KELB180

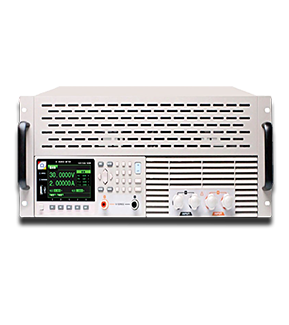

Programmable DC Electronic Load KELB180 Series - 1800W-2400W

Description

KELB180 is a precision programmable DC electronic load controlled by a high performance microprocessor. It uses 3.5-inch TFT true color LCD display Offers 4-basic working modes (CC/CV/CR/CW) and 10 functional modes. With comprehensive protection, over-heat protection, over-current protection, over-power protection, over-voltage protection, loop oscillation protection.KELB180 series E-load supports RS232, LAN, USB and analog interfaces to fit your versatile solution and testing needs.

Resources

Data Sheet

3D-CAD

Request a Sample

Rate Product: 1 Star2 Stars3 Stars4 Stars5 Stars
Loading...

Specifications

  • Dynamic test mode (DYNA)

  • OCP mode

  • EFFECT mode

  • Professional battery test function

  • High-speed dynamic frequency conversion scanning function (SWEEP)

  • AUTO mode

  • Timing test mode

  • Model

    KELB182

    KELB182B

    KELB242

    KELB242B

  • Input Voltage

    15V - 150V

    50V - 500V

    15V - 150V

    50V - 500V

  • Input Current

    24 A - 240 A

    12 A - 120 A

    24 A - 240 A

    12 A - 120 A

  • Input Power

    1800W

    1800W

    2400W

    2400W

  • Min.operation voltage

    1V@240A

    5.5V@120A

    1.5V@240A

    4.5V@120A

  • Min rise time@ FS current

    60µs

    60µs

    60µs

    60µs

  • 500 kHz high speed voltage, current sampling rate

  • High precision voltage and current measurement

  • Fast loop response speed and current slew rate

  • Programmable single step up to 10µS

  • Equipped with remote four –wire compensation

  • Unique real-time display of current ripple and voltage ripple

  • Real-time display of load power and resistance

  • Switching Power Supply

  • LED Power Supply

  • Cell Phone Battery Charger

  • Cell Phone Charger

  • UPS Battery

  • Vehicle Electronics

  • Power Battery Pack

  • Fuse
