KELB60

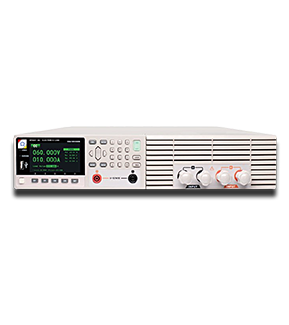

Programmable DC Electronic Load KELB60 Series 600W-1200W

Description

KELB60 is a precision programmable DC electronic load controlled by a high performance microprocessor. It uses 3.5-inch TFT true color LCD display offers 4 basic working modes (CC/CV/CR/CW) and 10 functional modes.
With comprehensive protection, over-heat protection, over-current protection, over-power protection, over-voltage protection, loop oscillation protection. KELB60 series E-load supports RS232, LAN, USB and analog interfaces to fit your versatile solution and testing needs

Resources

Data Sheet

3D-CAD

Request a Sample

Rate Product: 1 Star2 Stars3 Stars4 Stars5 Stars (1 votes, average: 5.00 out of 5)
Loading...

Specifications

  • DYNA dynamic test function

  • OCP over current protection mode/p>

  • BATT battery mode

  • EFFT load effect mode

  • SWEEP dynamic frequency conversion scanning function.

  • TIMEING _me measurement function

  • OVP over voltage protection mode

  • AUTO mode

  • LIST function

  • Model

    KELB601

    KELB601B

    KELB122

    KELB122B

  • Input Voltage

    15V - 150V

    50V - 500V

    15V - 150V

    50V - 500V

  • Input Current

    12 A - 120 A

    6 A - 60 A

    24 A - 240 A

    6 A - 60 A

  • Input Power

    600W

    600W

    1200W

    1200W

  • Min.operation voltage

    1.5V@120A

    4V@60A

    1.5V@240A

    4V@60A

  • Min rise time@ FS current

    60µs

    60µs

    60µs

    60µs

  • 500 kHz high speed voltage, current sampling rate

  • High precision voltage and current measuremen

  • Fast loop response speed and current slew rate

  • Programmable single step up to 10µS

  • Equipped with remote four –wire compensation

  • Unique real-time display of current ripple and voltage ripple

  • Real-time display of load power and resistance
