ULS 100

ultra-slim-power-resistors

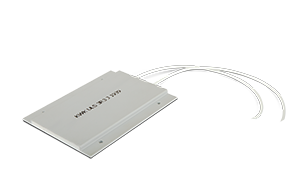

ULS 100 Ultra Slim Resistors

Description

Aluminum Housed Resistors – 3.3Ω – 1KΩ – 100W – ±150 PPM/°C. ULS – Series

  • Series

    ULS
  • Compliance

    RoHS

  • Marked

    CE

Resources

Data Sheet

3D-CAD

Request a Sample

Rate Product: 1 Star2 Stars3 Stars4 Stars5 Stars (3 votes, average: 5.00 out of 5)
Loading...

Specifications

Technical Specification

  • Rated Power (W)

    100

  • Resistance Range

    3.3Ω - 1KΩ

  • Termination type

    Cable leadout

  • Application

    Discharge, Dynamic Braking, Filter Resistors, Anti - Surge / Pulse Withstanding, High Power

  • Construction

    Wire Wound

  • Mounting

    Chassis/ Heat Sinkable Mount, Screw Mount

Electrical Specifications

  • Characteristics

    Condition

    Compliance

  • Tolerance

    ±5% & ±10%

    -

  • Temperature Coefficient

    -

    ±150 PPM/°C

  • Insulation Resistance

    @500V DC

    > 100 MΩ

  • Short term overload

    5 x Rated Power for 5sec

    ΔR< ±(2% + 0.05Ω)

  • Operating Temperature

    -25°C to 250°C

    -

  • Dielectric Strength

    2500VAC rms for 1minute

    No Breakdown or Flashover

  • Degree of Protection

    IP60

    -

  • Recommended Heatsink

    300(W) x 300 (L) x 3 (H) in mm

    -

Features

  • Ultra Slim - Best suited where space really matters.

  • Excellent short term overload & continuous power performance.

  • Excellent Electrical stability, reliability and mechanically very rigid.

  • UL approved cables used for terminations.

  • Customized terminations are possible.
